Upgrade your vehicle's safety and visibility with our 7 Inch AHD 4 Channel Split Screen Wireless Car CCTV System—designed for commercial vehicles (trucks, buses, forklifts, trailers) and personal cars.
Item No :
WT-FM7001Voltage :
10-45V DCColor :
/Waterproof :
IP69KBeam :
/MOQ :
2pcs
Advantage

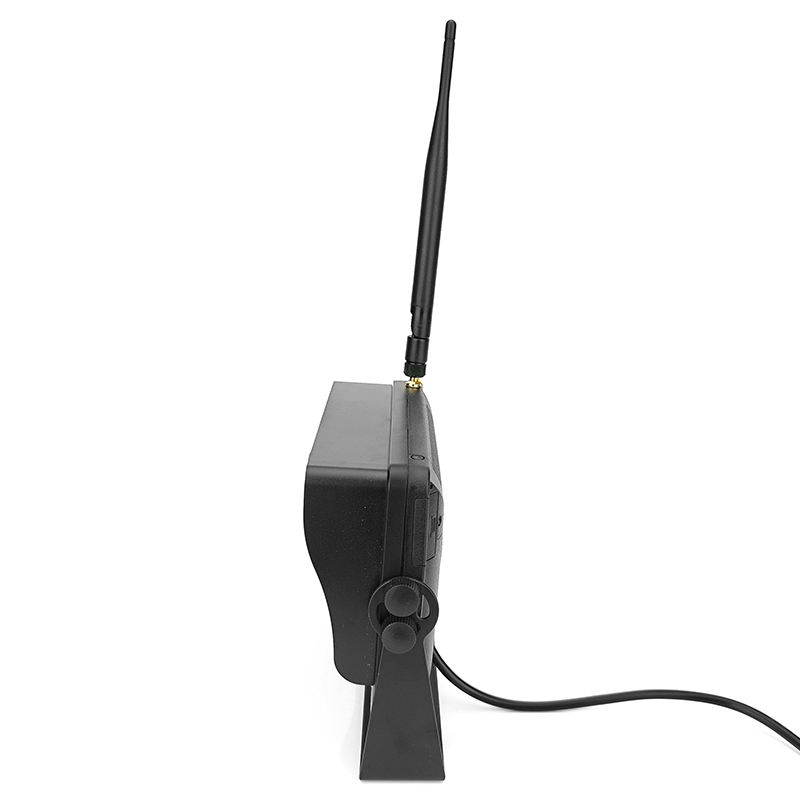

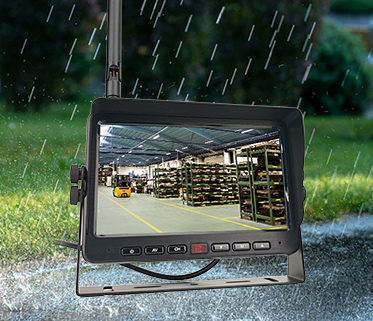

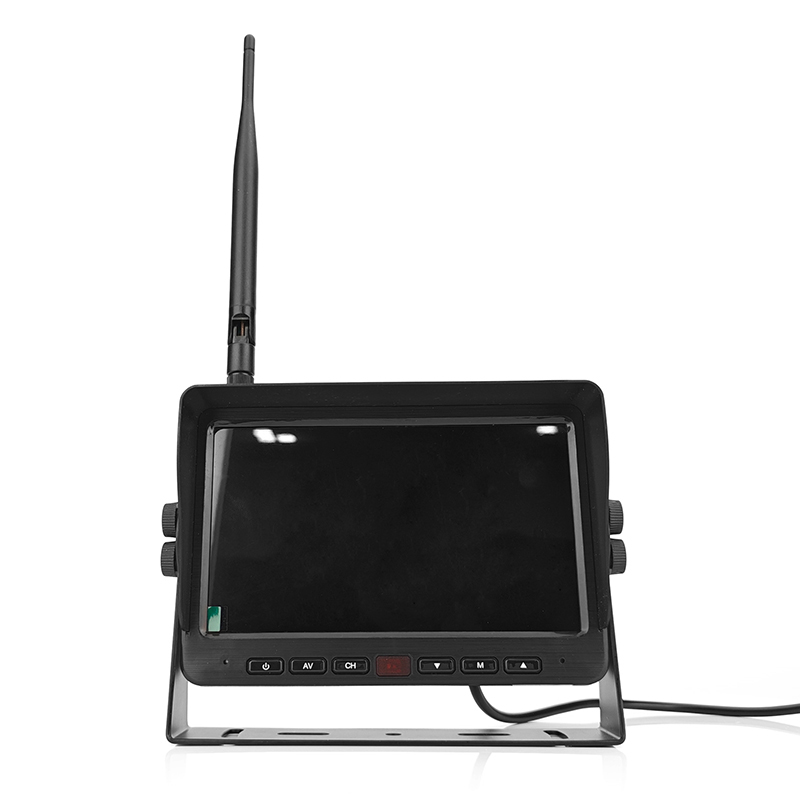

7-inch TFT LCD monitor with 1024×600 resolution offers a wide viewing angle (170° horizontal/vertical) for easy visibility from the driver’s seat.
Quad split-screen, dual-screen, or single-screen mode—switch freely to monitor multiple camera angles (front, rear, left, right) simultaneously.

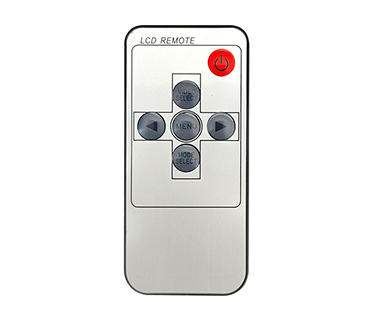

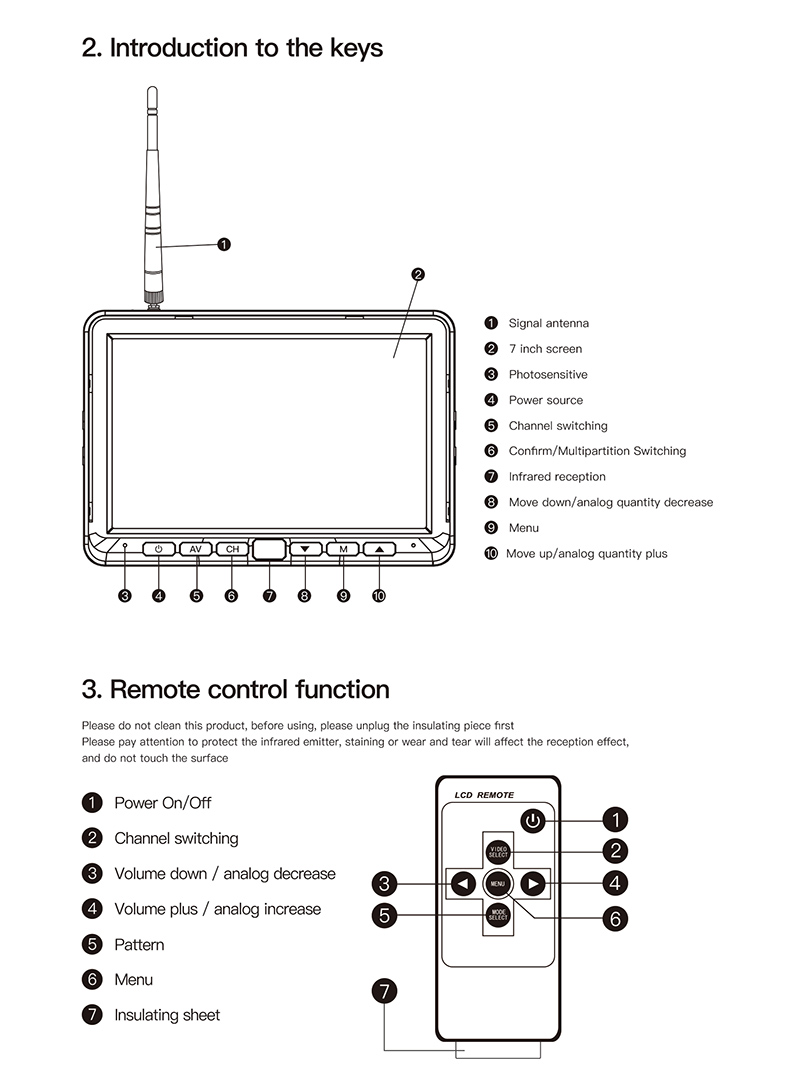

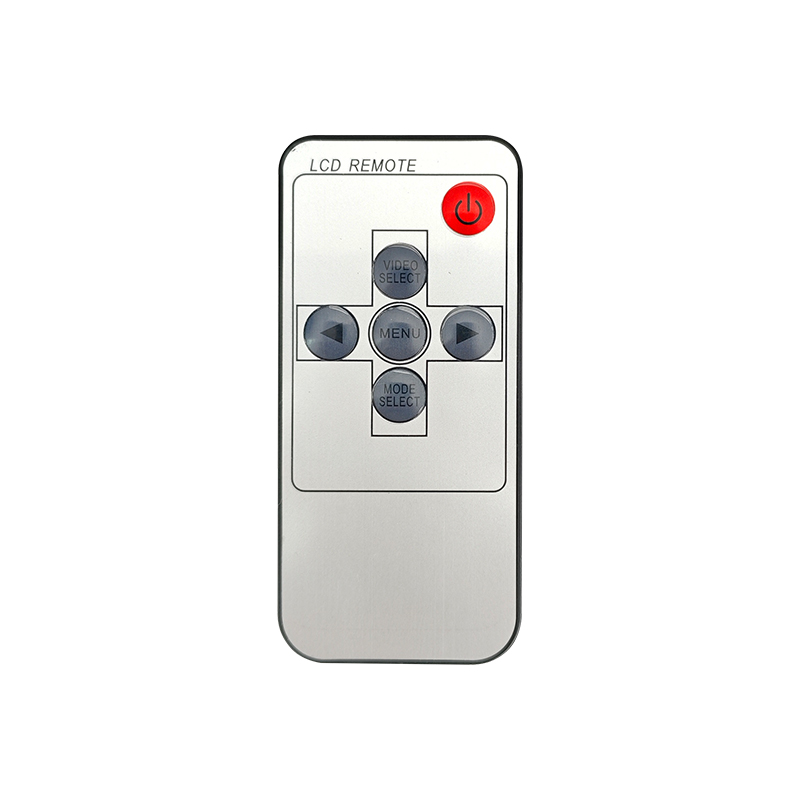

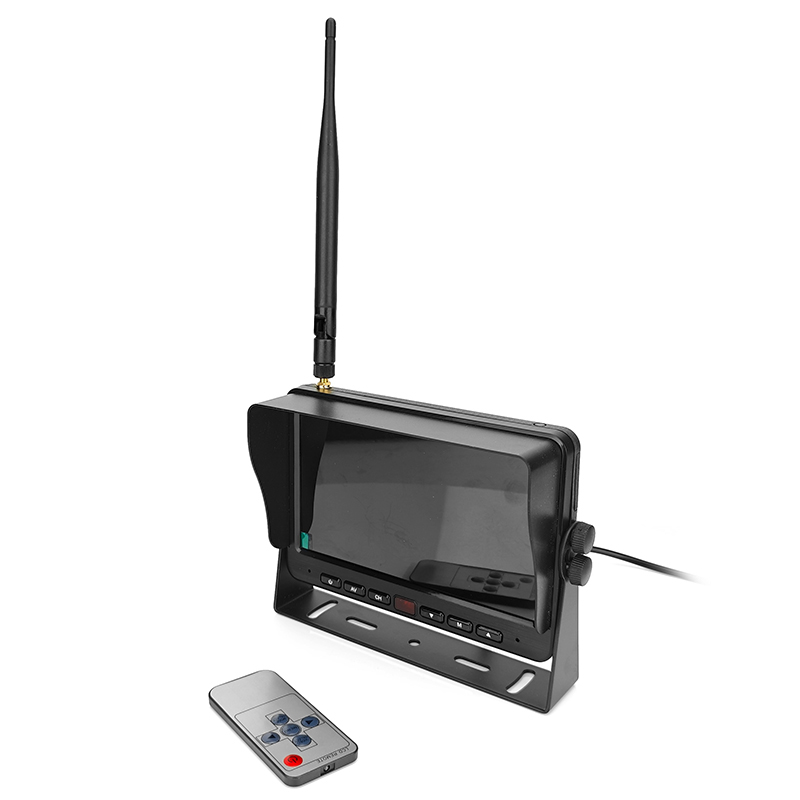

Touch-sensitive buttons or remote control for quick mode changes and brightness/contrast adjustments.
• HD Visual Clarity
7-inch high-definition monitor + 4 AHD cameras provide sharp, detailed video (day and night) for reliable visibility
• Wireless Convenience
No complicated wiring—easy to install and set up, saving time and labor costs
• Quad Split-Screen View
Monitor all four camera feeds simultaneously to cover 360° surroundings, eliminating blind spots
• Safety Enhancement
Reduce collision risks during driving, parking, cargo loading, or tight-space maneuvering.
Specification
These features ensure excellent performance, which is reflected in the following technical specifications:
| Size | 7 inch |
| Aspect Ratio | 16:9 |
| Voltage | 10-45V DC |
| Contrast | 500:1 |
| Resolution | 1024 x (RGB) x 600 |
| Brightness | 450cd/㎡ |
| System Format | PAL/NTSC |
| Operating Frequency | 2412-2484MHZ |
| Impedance | 50Ω |
| Transmit Output Power | 19dBM |
| Transmit Distance | Open field distance of 250 meters |
| Modulation | CCK/QPSK/BPSK/OFDM(802.11g/n/ax) |
| Spread Spectrum | Frequency hopping |

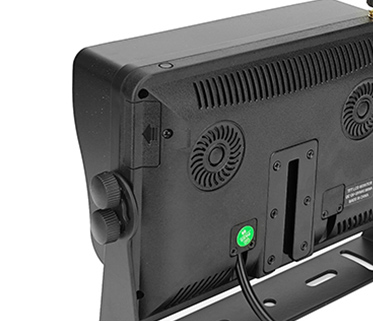

| Loudspeaker | 2pcs x 2W (8Ω) |
| Operating Temp | -20℃ - +70℃ RH95%MAX |
| Storage Temp | -30℃ - +80℃ RH95%MAX |
| Memory Card | SD card |
| Menu | Multi-language menu |
| Operating mode | Panel buttons/Remote control |
| Housing material | ABS |
| Warranty | 1 Year |
Application
Why Choose This System?
FAQ
Q1: Factory or trading company?
A: We are factory. Welcome to our company for factory inspection.
Q2: Delivery time
A: The lead time will depends on items and quantity, normally is 15~20days. Some hot sale model we keep stock.
Q3: Payment Term
A:T/T 30% deposit before mass production, 70% balance before shipment.
Q4: Certificates
A: CE,ROHS，ECE R10, ECE R65, UKCA.
Q5: Sample Order
A:Yes. We welcome sample for testing.
Q6: Package
A:Packed with white box or double blister then with the carton for outside packing or as your requirement.
Q7: Logo
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q8: Quality control
A: We have a profession QC team with the strong sense of responsibility. We maintain tight control over production from raw material to finish products. Every working procedure is monitored by our specialists to ensure the high quality of our parts.
Q9: Warranty
A: 1 years.
Q10: OEM/ODM
A:Yes. We have professional research & development department to support OEM or ODM orders.

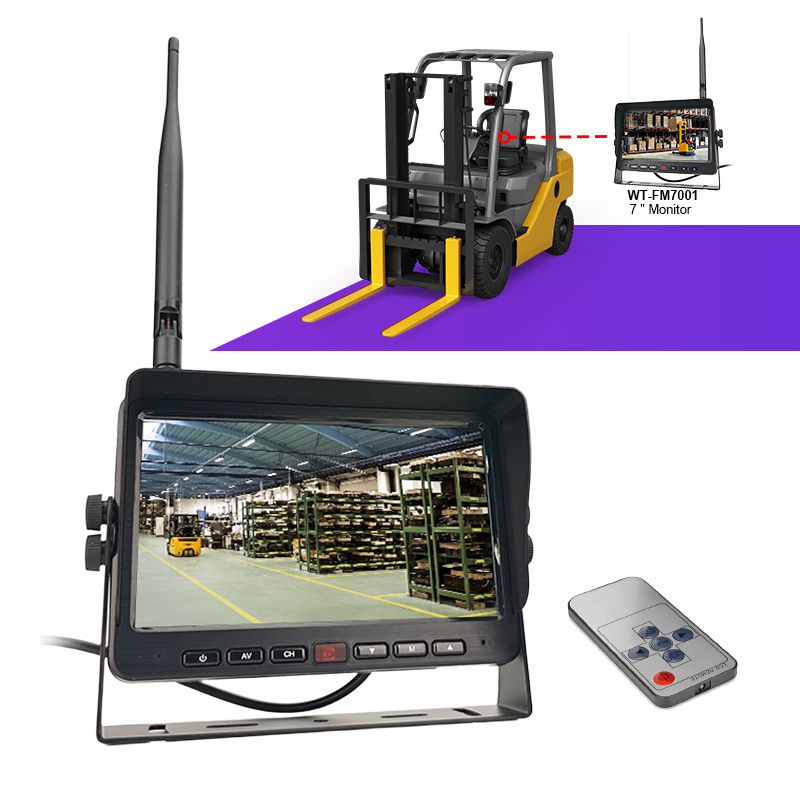

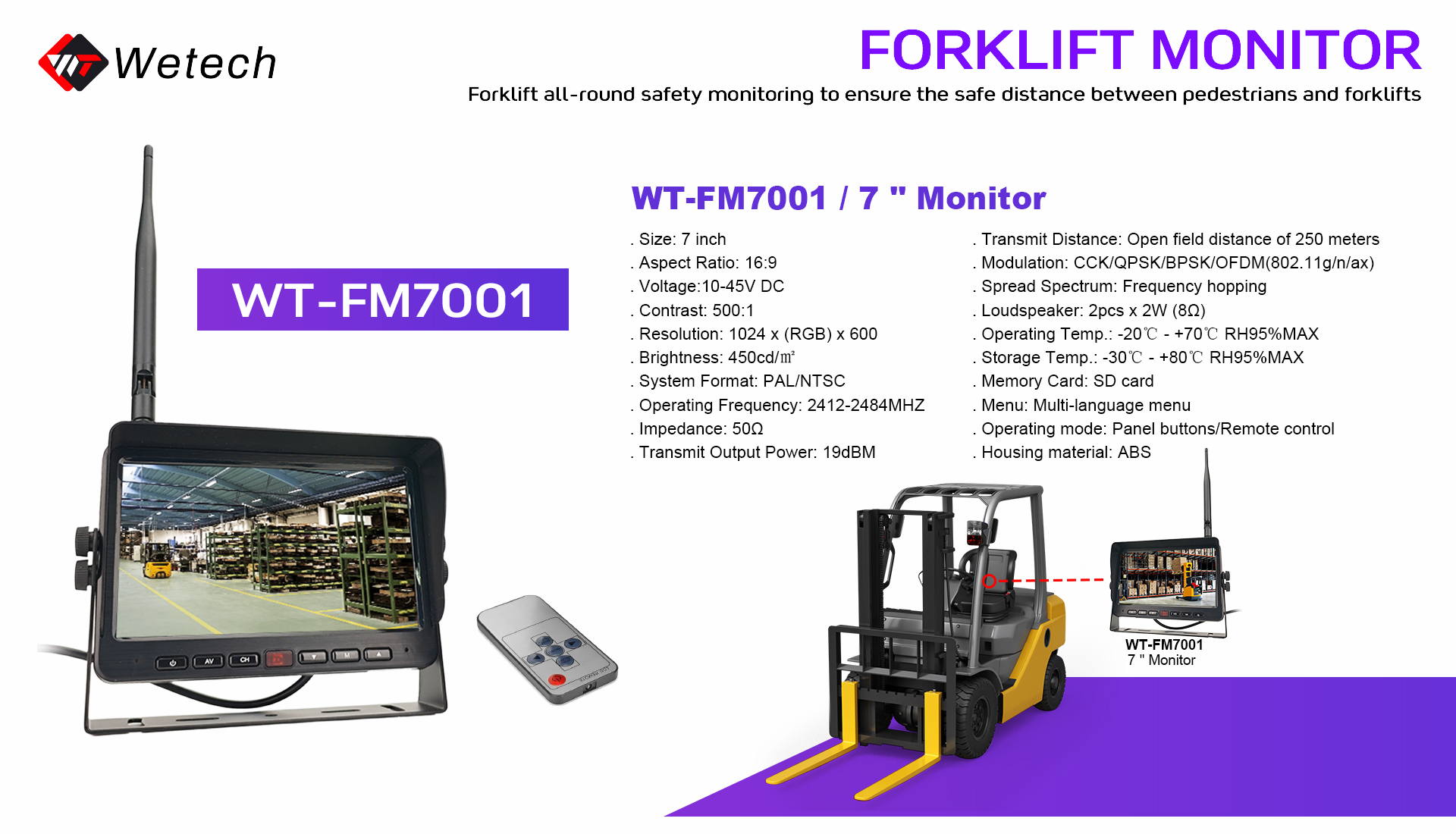

Upgrade forklift safety and efficiency with the Wireless Forklift Camera Monitor System – designed to eliminate blind spots, maintain safe pedestrian distances, and enable precise cargo positioning in warehouses, loading docks, and industrial yards
