Forklift Blue LED Safety Light - IP67 Rated Pedestrian Warning Projector with Adjustable Mounting Bracket

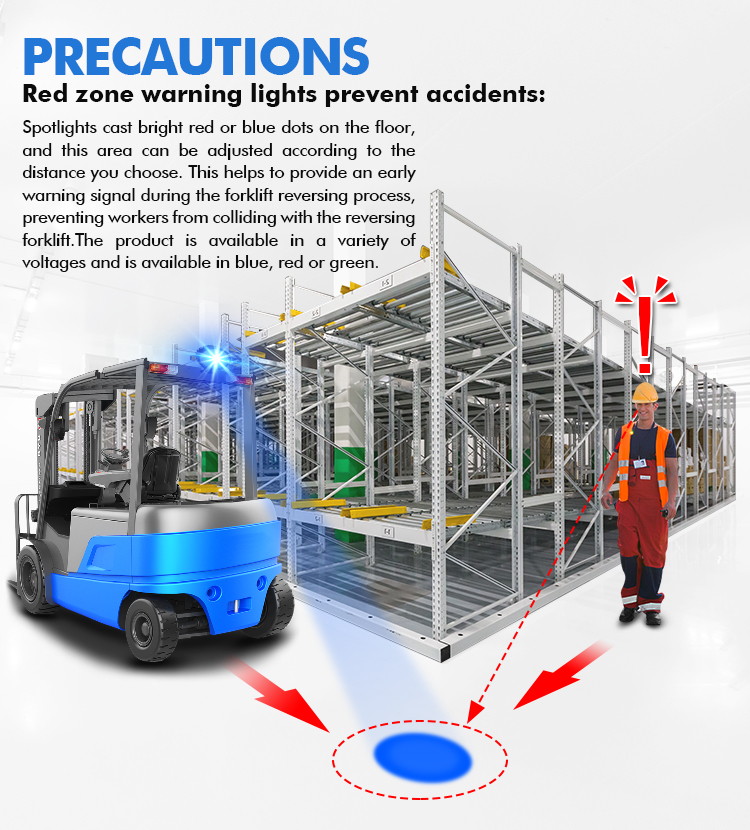

Operational Principle: A high-intensity LED light, typically housed in a rugged enclosure, is mounted on the forklift. It is wired to activate automatically whenever the forklift is in motion (usually via connection to the travel directional switch or key switch). It projects the light 5 to 30 feet ahead, creating a moving zone of awareness on the floor.

Usage & Application

When It's Used: Automatically whenever the forklift is powered on and moving, in both forward and reverse gears.

Primary Environments:

Warehouses and Distribution Centers

Manufacturing Facilities

Retail Backrooms and Stores

Loading Docks and Logistics Yards

Any shared space where forklifts and pedestrians interact.

Complementary Device: It is not a replacement for a functioning audible travel alarm (backup beeper) or the operator's vigilance. It is a supplementary safety device used in conjunction with horns, proper lighting, and safe driving practices.

Importance & Role in Safety Programs

Addresses Human Factors: Pedestrians are often distracted, wearing headphones, or focused on tasks. The visual cue on the ground directly in their path catches their attention effectively.

OSHA Alignment: While not explicitly mandated by OSHA, its use is strongly encouraged as part of an employer's duty to provide a workplace "free from recognized hazards" (OSHA's General Duty Clause, Section 5(a)(1)). It is a recognized best practice in material handling.

ANSI/ITSDF B56.1 Standard: This industry safety standard for forklifts recommends the use of auxiliary lighting, such as blue spot lights, to improve visibility and awareness.

Key Component of a "Layered Safety" Approach: Represents the visual warning layer, working alongside audible alarms (sound), physical barriers (engineering), training (administrative), and PPE.

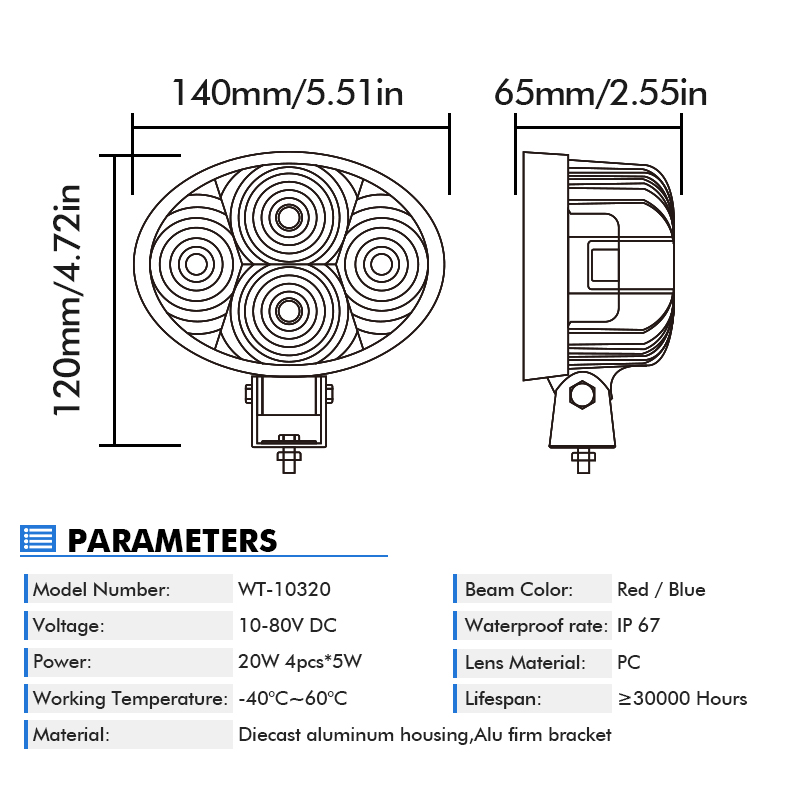

Product Attributes & Specifications

Light Source: High-flux, long-life LEDs (50,000+ hours). Energy-efficient and shock-resistant.

Color: Royal Blue (470-490nm wavelength). This specific blue is chosen because it contrasts sharply with most industrial floor colors and ambient lighting, ensuring maximum visibility.

Beam Pattern/Projection:

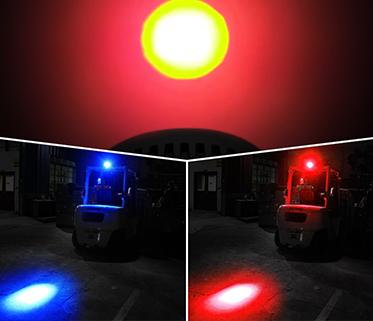

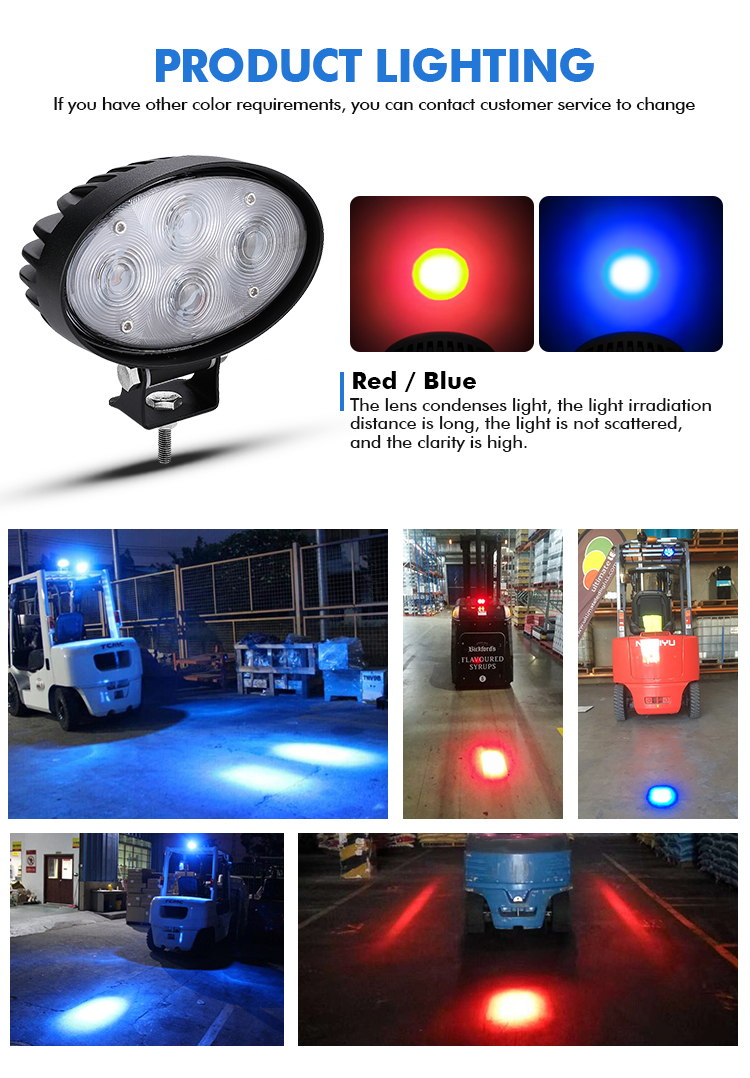

Standard Spot: A circular blue dot.

Line Projector: Projects a solid or dashed blue line, sometimes with warning text (e.g., "CAUTION").

Cross/Pattern Projector: Projects a symbol like a cross or chevron to draw even more attention.

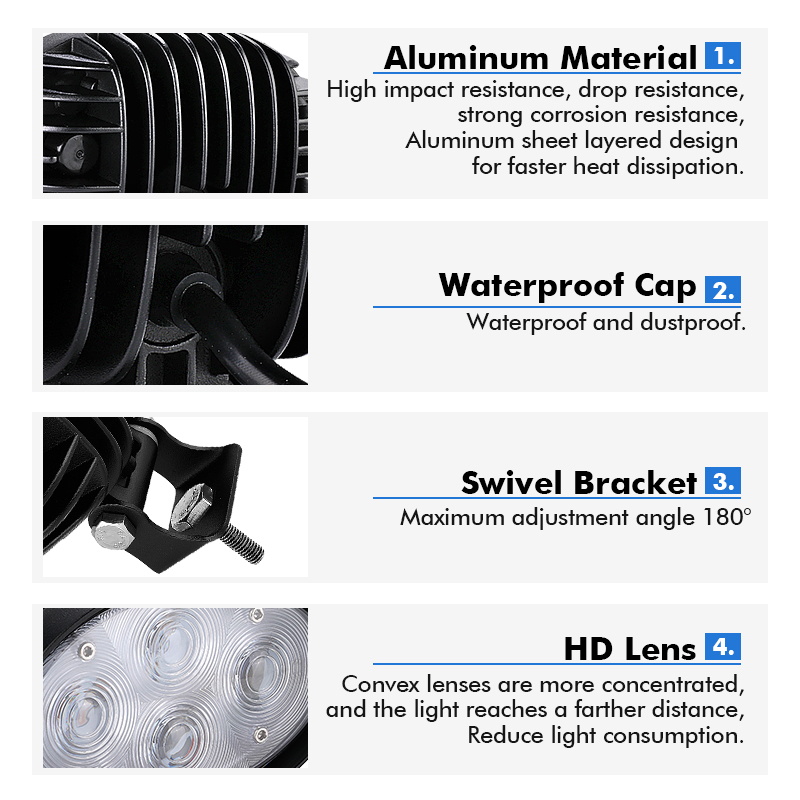

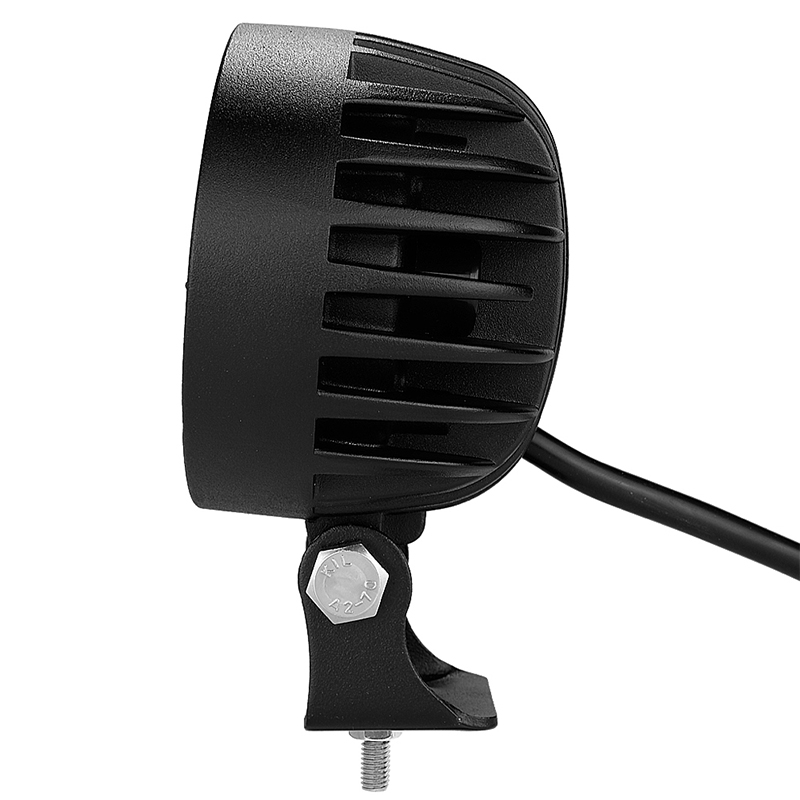

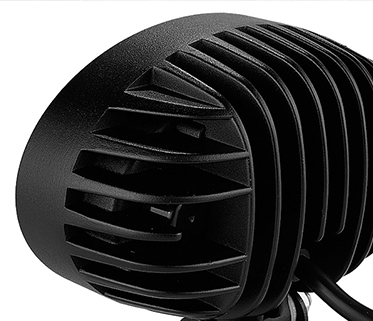

Housing: Die-cast aluminum or polycarbonate for durability and heat dissipation. Rated as IP67 or higher for dust and water resistance, crucial for wash-down and outdoor environments.

Voltage Compatibility: Available for common industrial vehicle voltages (e.g., 12V, 24V, 36V, 48V, 72V DC).

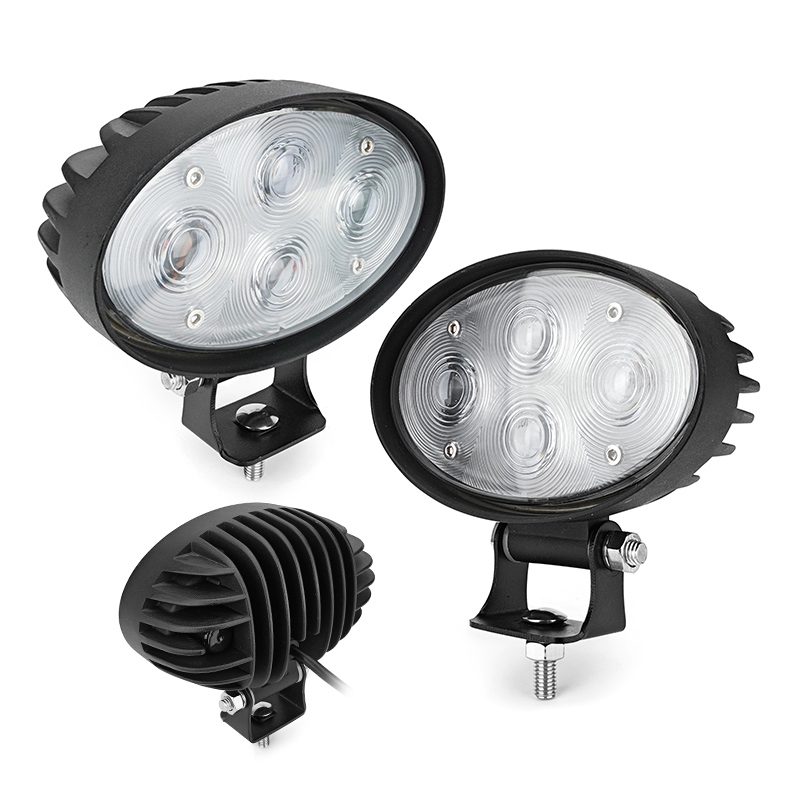

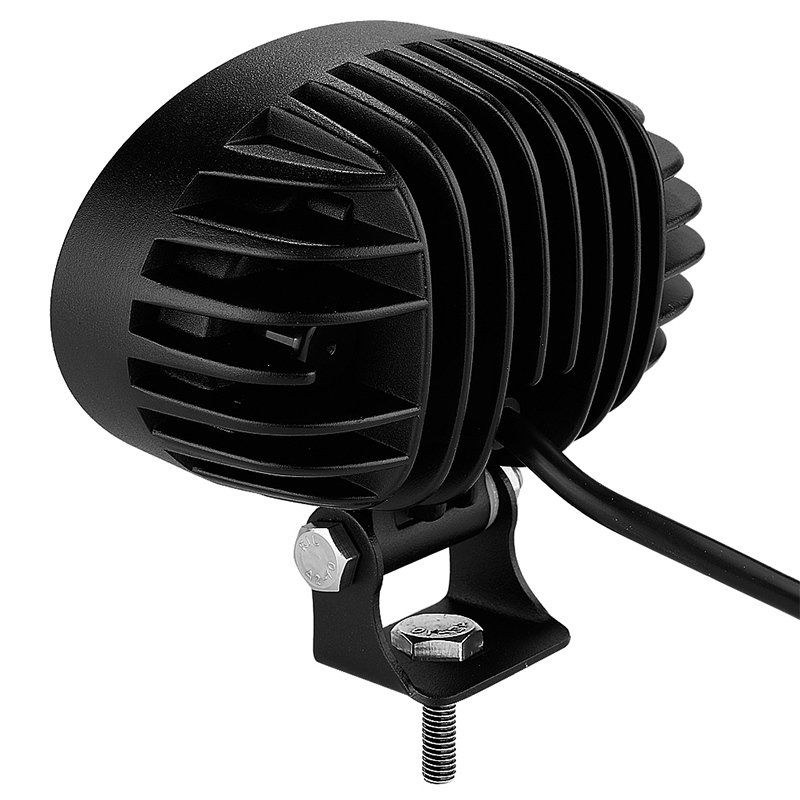

Mounting: Versatile brackets for easy installation on the overhead guard, mast, or chassis of the forklift. Aiming is adjustable.

Lens: Tempered glass or high-impact polycarbonate lens.

Activation: Typically wired to the ignition/key switch or directional controller for automatic operation. May include an optional manual override switch.

Certifications: May carry certifications from UL, CE, RoHS, or other relevant standards bodies for electrical safety and environmental compliance.
