Gobo Projector Installation Position Guide: Vehicle-Mounted, Industrial & Multi-Scenario Applications

Gobo projectors are versatile lighting devices that combine safety warning, path guidance and brand projection functions. However, their real-world effectiveness depends heavily on proper installation positioning. The right placement maximizes visibility, improves safety compliance and delivers long-term value, while poor placement wastes investment and fails to achieve expected results.

This article outlines the most practical installation positions across four major application scenarios, focusing primarily on vehicle-mounted safety projectors and fixed industrial warehouse projectors, with supplementary coverage of public transportation and commercial retail use cases. It also includes power matching recommendations to help you select the right model for each position.

1. Vehicle-Mounted Applications: Installation Positions for Industrial Vehicle Logo Projectors

Vehicle-mounted gobo projectors are dynamic safety warning devices that move with industrial equipment. They project clear visual markers onto the ground as the vehicle travels, alerting nearby pedestrians and workers to keep clear in real time.

1.1 Front of Forklifts

Installation position: Mounted centrally under the front of the forklift, projecting forward and downward onto the floor.

Function: Projects warning triangles, STOP signs or custom safety logos so pedestrians ahead can detect approaching forklifts from a distance and take evasive action early.

Best for: Narrow warehouse aisles, high-traffic zones and mixed pedestrian-and-forklift areas.

Recommended power: 20W–50W low-power series.

1.2 Sides and Rear of Forklifts

Installation position: Mounted on both sides or the rear of the forklift body, projecting sideways or backward onto the ground.

Function: Marks the forklift's safe operating perimeter. Side and rear workers can clearly identify the vehicle boundary and avoid side collisions or tail-swing accidents.

Best for: Racking aisles, loading and unloading operation zones.

Recommended power: 20W–50W low-power series.

1.3 AGVs and Automated Warehouse Robots

Installation position: Mounted around the vehicle body, often using multiple units for full perimeter coverage.

Function: Projects dynamic safety warning zones around automated equipment in automated warehouses, alerting on-site staff to the robot's travel path.

Recommended power: 20W–50W low-power series.

1.4 Heavy Construction Machinery (Loaders, Bulldozers, etc.)

Installation position: Mounted on top of the cab or at the four corners of the vehicle body, projecting outward to mark the working radius boundary.

Function: Defines the vehicle's danger zone on construction sites, so ground personnel can clearly recognize the operating boundary and maintain a safe distance.

Recommended power: 50W–150W low-to-medium power models.

2. Industrial Warehouse Applications: Installation Positions for Fixed Logo Projectors

Fixed gobo projectors are permanently installed on ceilings, crossbeams or pillars. They replace easily worn floor paint and tape markings, delivering maintenance-free, long-lasting visual guidance and safety warnings.

2.1 Main Aisle Entrances and Crossings

Installation position: Ceiling-mounted or mounted on overhead crossbeams, projecting downward onto the floor.

Function: Projects "Forklift Crossing", "Slow Down", "STOP" and other warning signs to remind pedestrians and vehicles entering the aisle to slow down and watch for traffic.

Best for: High-traffic T-junctions, cross intersections and main aisle entrances.

Recommended power: 150W–240W medium-power series.

2.2 Ends of Racking Aisles

Installation position: Mounted at the top end of each aisle, projecting directional markers along the aisle floor.

Function: Projects directional arrows and aisle numbers to guide orderly vehicle movement and reduce wrong-way driving and aisle congestion.

Best for: Long high-bay storage aisles, narrow-aisle warehouses.

Recommended power: 150W–240W medium-power series.

2.3 Hazard Zones and Restricted Area Boundaries

Installation position: Mounted on surrounding pillars or overhead structures, projecting warning lines or patterns along the area perimeter.

Function: Marks no-entry zones, high-voltage areas, loading danger zones and other restricted areas. Unlike quickly wearing floor paint, projected markings remain consistently clear and require almost no maintenance.

Best for: Battery charging rooms, hazardous material storage, equipment maintenance areas.

Recommended power: 150W–240W medium-power series.

2.4 Pedestrian Walkway Boundaries

Installation position: Continuously mounted along the ceiling on both sides of dedicated walkways, projecting boundary lines on the floor.

Function: Clearly separates pedestrian and vehicle traffic zones, guides staff to use designated walkways and reduces mixed-traffic collision risks.

Best for: Large logistics warehouses and production workshop main aisles.

Recommended power: Multiple medium-power units installed in sequence.

2.5 Loading Docks and Platforms

Installation position: Mounted above the dock edge, projecting warning zones onto the ground.

Function: Projects "Watch Your Step", "Loading Zone" and similar warnings to remind operators to maintain a safe distance from the platform edge.

Best for: Warehouse unloading bays, logistics loading docks.

Recommended power: 150W–320W medium-to-high power series.

2.6 Outdoor Yard Areas of Large Warehouses

Installation position: High-mounted on building exteriors or lighting poles for long-distance projection.

Function: Projects factory logos, safety slogans or zone divisions across large outdoor yard areas.

Best for: Large industrial parks and logistics campus outdoor plazas.

Recommended power: 320W–600W high-power series.

3. Public Infrastructure & Transportation Scenarios

Beyond industrial environments, gobo projectors also serve practical guidance and safety functions in public transportation scenarios:

• Parking lots: Mounted above parking spaces or at entrances to project space numbers, directional arrows and no-parking warnings.
• Bus stops, subway stations and airports: Mounted on platform canopies or corridor ceilings to project directional arrows, safety lines and exit markers. They remain clearly visible in rain, fog and low-light conditions.

4. Commercial Retail & Branding Scenarios

In retail and brand environments, gobo projectors are mainly used for brand exposure and in-store guidance:

• Store entrances: Mounted above the storefront or doorway, projecting brand logos onto the sidewalk to attract foot traffic and reinforce brand recognition.
• Shopping mall and supermarket aisles: Ceiling-mounted to project promotional messages, zone directions and brand area markers.

Power Selection Guide: Match Projection Distance to Scenario

Choosing the correct wattage ensures clear, bright projection at your required installation distance:

1. Short distance (1–5 meters) – Vehicle mounting, small indoor areas → 20W–50W low-power series

2. Medium distance (3–30 meters) – Warehouse aisles, retail stores, exhibition halls → 150W–240W medium-power series

3. Long distance (10–150 meters) – Large warehouse outdoors, building exteriors, parking lots → 320W–600W high-power series

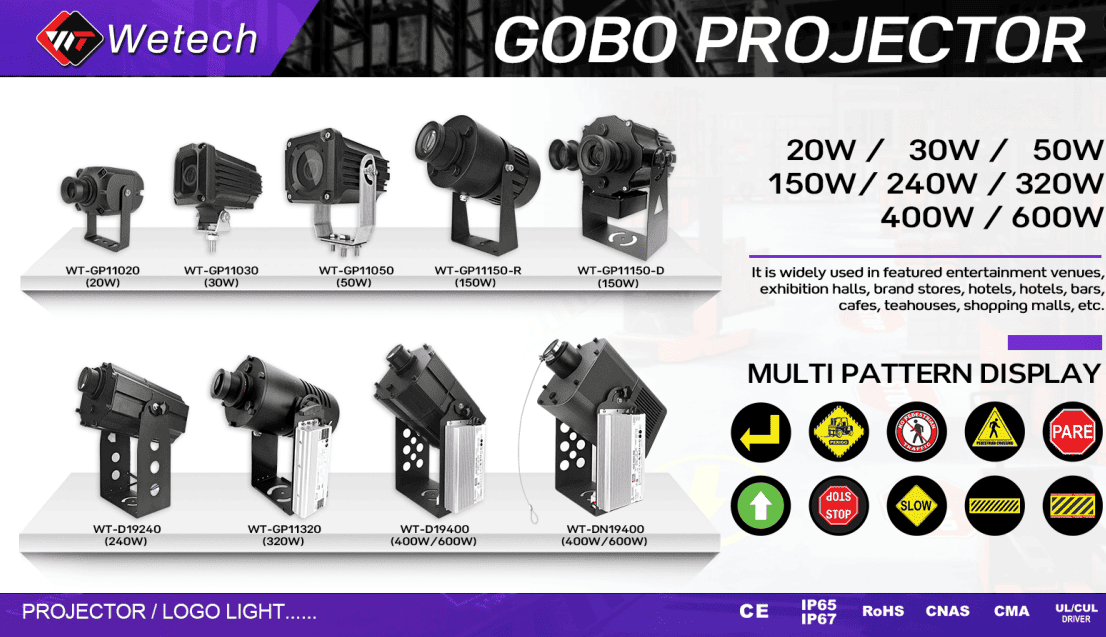

Wetech offers a complete gobo projector product line covering low, medium and high power ranges, with customizable pattern options to suit industrial safety, commercial branding and public infrastructure applications.

Conclusion

Different installation positions correspond to different functional purposes: vehicle-mounted projectors focus on dynamic collision prevention, while fixed warehouse projectors focus on zone management and traffic separation.

The core selection logic is straightforward: projection distance determines required wattage, and operating environment determines the required protection level. With the right placement and power rating, gobo projectors deliver far better long-term value than traditional floor markings — no repainting needed, no wear and tear, and constant clear visibility.

If you need help matching the right models and installation plans for your warehouse or fleet, welcome to contact us for professional selection guidance.

FAQ:

• What scenarios do Wetech gobo logo lights fit?

Four main applications: vehicle-mounted safety (forklifts, AGVs), warehouse fixed installation (aisles, hazard zones), public infrastructure (parking lots, bus stops), and commercial retail (brand projection, store guidance).

• Can gobo projectors be installed outdoors? Are they waterproof?

Yes. It features IP65 and IP67 protection ratings, suitable for outdoor applications, and can work normally on rainy and foggy days.

• Can fixed gobo projectors adjust angle?

Yes. All come with adjustable brackets for tilt and rotation to align with target areas.
