Walk into any modern logistics warehouse or distribution center, and you will see the same picture: forklifts, pedestrians, racking aisles and loading docks all overlapping in a constant flow of activity. Mixed traffic is simply the reality of how warehouses run today. But that reality comes with a cost — collisions, workers wandering into active work zones, and forklift-related incidents remain stubbornly high across the industry.
Here is the thing about most of these incidents: they are rarely caused by careless operators. More often than not, the real issue is that boundaries are not clear enough. Pedestrians do not know where the safe walkway ends. Forklift drivers struggle to judge the extent of a danger zone. And temporary work spots often have no visual cue at all.
Traditional warehouses have long relied on painted floor lines, reflective tape and signage to mark aisles and hazard zones. The problem? These are all passive solutions, and in a busy warehouse they tend to fail when you need them most. In this article, we will break down why traditional floor markings fall short, explain how safety laser lights solve the problem at its source with active projection, and share what to look for when choosing a system for your own facility.
Almost every warehouse safety system starts with the same basic idea: paint a line on the floor. It sounds simple enough. But in a real, high-frequency warehouse environment, that painted line ends up costing more and delivering less than most managers expect. The problems usually fall into three buckets.
Forklift tires rolling over the same spot day after day, pallets being dragged across the floor, goods being shifted around — all of this adds up. Painted lines start cracking, peeling and fading within weeks in a busy facility. That means someone has to go back and repaint them on a regular schedule. And repainting usually means partially shutting down the affected area, which eats into both labor costs and operational throughput.
Paint and reflective tape are passive reflectors — they only work when there is enough ambient light bouncing off them. Head to the back of a deep racking aisle, a dim corridor corner, an enclosed loading dock or an underground storage area, and those markings become much harder to spot. In those conditions, pedestrians and forklift operators simply do not see the boundary in time.
Warehouse layouts are not static. Peak season means extra sorting areas. Promotional periods mean temporary stock storage. Equipment maintenance means an aisle gets blocked off for a few days. All of these changes require safety boundaries that can adapt quickly. But once paint is on the floor, changing it means scraping up the old line, re-measuring, repainting and waiting for it to dry. It is messy, time-consuming, and the fumes and dust do not help either. Reflective tape is not much better — peel it off and you are usually left with sticky residue that is a pain to clean. The end result? Temporary work zones often end up with no markings at all, and that is where hazards creep in.
The bottom line is straightforward: passive markings depend on external light, need constant upkeep, and cannot be adjusted quickly enough for modern warehouse operations. What warehouses actually need is a safety boundary that glows on its own, never wears out, and can be redeployed in minutes.

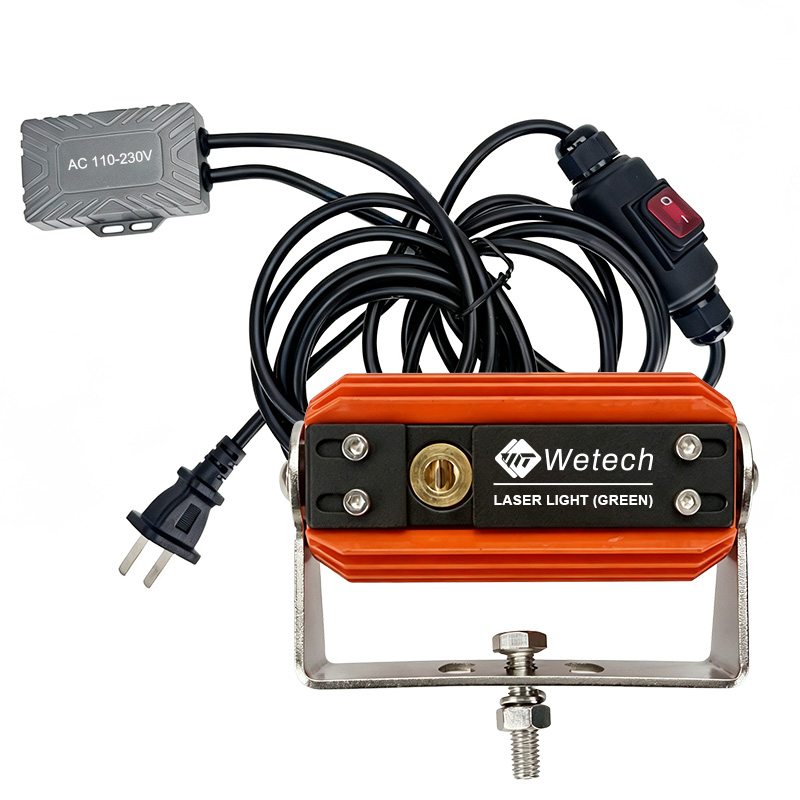

(WT-TZ8021-G1)
The concept behind safety laser lights is refreshingly simple. A dedicated fixture projects a bright, straight line onto the floor — available in red, blue, green and other colors — creating a clear, continuous visual boundary. The key difference from paint is that this line emits its own light. It does not depend on ambient illumination, and it never touches the floor, which means it sidesteps all three major problems of passive markings.
The projected laser line produces high-contrast light in your choice of color, and it stays consistently recognizable whether you are in a bright main aisle, a dim racking tunnel, or a loading dock where sunlight and shadow shift throughout the day. The moment a pedestrian or forklift driver enters the field of view, they see the boundary — no extra lighting required.
Because the line is projected rather than applied, there is no contact with the floor. No rolling wear, no drag scratches, no peeling. Set it up once, calibrate the angle, and that line stays projected consistently for the long term. No repainting schedules, no shutdowns for worn markings — and over time, that adds up to real savings on safety management costs.
This is where laser lights really pull ahead of paint. Instead of scraping and repainting, you just loosen the bracket screws, adjust the projection angle, and retighten. When the warehouse layout shifts, when you add a temporary work zone, or when seasonal reconfiguration rolls around, you can have a new boundary in place within a few minutes. No scraping, no painting, no waiting for things to dry, no fumes or dust. It fits the way modern warehouses actually operate.
A bright projected line on the floor creates a clear psychological "do not cross" signal. Both research and real-world deployments bear this out: actively illuminated lines get more attention than passive paint. Pedestrians instinctively avoid the lit zone, and forklift drivers can judge their working range more precisely. That behavioral shift is where the real accident reduction comes from.
No two warehouses are exactly alike. You might have a dry ambient-temperature facility or a humid cold-storage warehouse. You might need fixed main aisle markings or dynamic zones that move with forklifts. When evaluating options, keep these five factors front of mind.
The power source dictates where the fixture can realistically be used. DC models offer a wide voltage range and can tap directly into the onboard power of forklifts, AGVs and tractors, making them ideal for projecting dynamic safety zones that move with the equipment. AC models, on the other hand, run on standard mains power and are meant for fixed mounting — ceilings, walls, overhead structures — where they project long-term boundaries for main aisles and loading docks.
Different mounting heights produce different line lengths. Before buying, work out your mounting height and aisle width, then make sure the projected line fully covers the boundary without falling short or spilling over into unrelated areas. Most manufacturers provide a projection-distance-to-line-length reference table, which makes this straightforward to check.
The IP rating tells you what kind of environment the fixture can handle. For a dry, clean warehouse at normal temperatures, a basic IPX4 rating is usually enough. But if your facility is humid, dusty, uses wash-down procedures, or includes cold-storage areas and outdoor loading zones, you will want IP65 or higher to keep dust and moisture out of the housing and protect the lifespan of the unit.
Aisles in a warehouse are rarely all the same width. Main aisles are wide, branch aisles are narrow, and work zones vary in size. If the fixture supports line width adjustment — usually via an accessory — you can fine-tune the thickness and coverage of the projected line to suit different layouts. One fixture model covers more scenarios, you carry less inventory, and reconfiguration becomes much simpler.
Most warehouses stay within a mild temperature range, but cold-storage facilities, outdoor docks and unheated warehouses in colder climates can push well outside that. Check that the fixture operating temperature covers your actual environment — the last thing you want is brightness dropping off or the unit failing to start when the temperature hits an extreme.
These five dimensions give you a complete framework for evaluating warehouse safety laser lights. Everything from power supply and projection quality to protection rating and environmental adaptability affects the real-world experience and the actual safety outcome. With those requirements in mind, Wetech offers two targeted safety laser light products, each built for one of the two core scenarios: mobile onboard use and fixed-aisle long-term deployment.

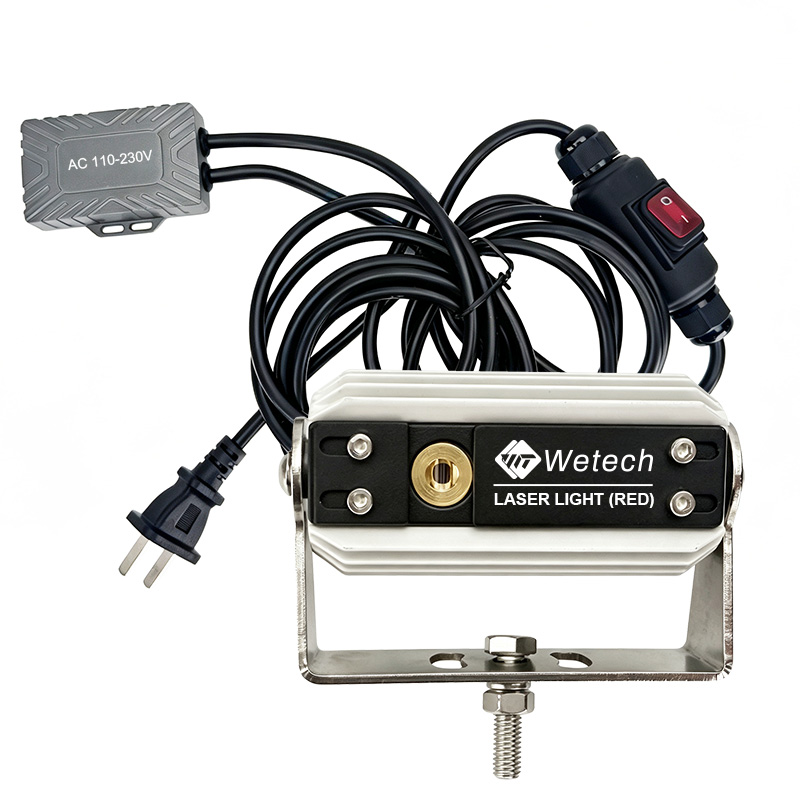

(WT-TZ8021-R1)
The WT-TZ8021 is a DC-powered laser safety light built specifically for mobile equipment. Think of it as a dynamic safety line that travels wherever the machine goes.
● Wide voltage compatibility: Supports DC 10–110V input, connects directly to the onboard power of forklifts, AGVs, tractors and other industrial vehicles — no extra transformer needed
● High-power light source: 500MW output, with red, blue, green and other custom colors available (standard model uses 638nm red); bright, strong penetration, projection distance 1–7m corresponding to line length 4.5–28m, covering most onboard operation scenarios
● Built to take a beating: Die-cast aluminum housing with good heat dissipation, impact and vibration resistant; IPX4 protection rated for onboard mobile environments; operating temperature -20°C to 70°C, lifespan over 10,000 hours
● Compact and flexible: Measures just 80×60×36.6mm, so it does not take up valuable space; mount it on top of the forklift, on the side, or on the overhead guard to project a dynamic safety boundary in real time as the vehicle moves
This model is especially well suited to forklifts, AGVs and other mobile equipment. Wherever the vehicle travels, the safety light projects with it, so surrounding pedestrians and other vehicles always have a clear sense of the machine working range.
The WT-TZ8026-R is an AC-powered laser safety light designed for fixed aisles. Its whole purpose is to be a long-term, stable, flexibly adaptable boundary line that stays put and keeps working.
● Wide voltage mains input: Supports AC 100–260V, plugs straight into standard warehouse power, suitable for fixed mounting on ceilings, walls and columns
● Stable light projection: 14.1mW output, with red, blue, green and other custom colors available (standard model uses 650nm red); projection distance 1–9m corresponding to line length 4–28m, covering everything from narrow branch aisles to wide main thoroughfares
● Adjustable line width: Comes standard with a line width adjustment accessory, so you can fine-tune the thickness and coverage of the projected line based on aisle width; one fixture handles aisles of different sizes, and reconfiguration is quick and painless
● High protection and wide temperature range: Die-cast aluminum housing, IP65 rated for dust and water protection; operating temperature -40°C to 70°C, built for harsh environments including cold-storage warehouses, humid storage areas and dusty loading zones, lifespan over 10,000 hours
This model is the right choice for long-term deployment in fixed scenarios: warehouse main aisles, pedestrian-vehicle segregation zones, loading dock boundaries, cold-storage aisles and more. Install it once and it projects a clear boundary consistently. The adjustable line width also means it can keep up when your warehouse layout changes.
How well safety laser lights work depends not just on the product itself, but also on how you install and use them. Here are a few tips that have been validated in real deployments.
On mounting height: For fixed fixtures, aim for a mounting height of 3 to 5 meters. At that height, the projected line fully covers the aisle width without being constantly blocked by pedestrians or forklifts. For onboard models, mount them on top of the overhead guard or at a high point on the side of the vehicle, so cargo does not get in the way of the projection.
On aisle layout: For main aisles with mixed pedestrian and vehicle traffic, consider mounting fixtures on both sides facing each other. A projected line on each side creates a "dual-line corridor" effect that reinforces boundary awareness more strongly than a single line on one side. For loading dock edges, project a continuous line along the edge of the dock to make it unmistakably clear that this is a drop-off hazard zone.
The core challenge with warehouse aisle safety really comes down to one mismatch: traditional floor markings are passive, but modern warehouse operations demand something dynamic, efficient and low-maintenance. Paint wears out fast, disappears in low light, and is genuinely inconvenient to reconfigure — it simply does not keep up with what high-frequency warehouses need today.
Safety laser lights address these problems at the source through active illumination, zero wear and flexible deployment. They do not rely on ambient light, so they stay highly recognizable in any area. They do not touch the floor, so one installation keeps working for the long term. And their adjustable angles mean zone boundaries can be changed anytime, adapting quickly to shifts in warehouse layout.
Wetech two safety laser light products — the WT-TZ8021 DC onboard model and the WT-TZ8026-R AC fixed model — cover the two main scenarios of mobile equipment and fixed aisles respectively. Use them individually or pair them together to build a complete warehouse safety boundary system. For warehouse operators looking to bring down accident rates, cut safety maintenance costs and raise the overall level of safety management, safety laser lights are one of the highest-return safety upgrades you can make.
If you are planning a safety laser light solution for your warehouse, or you would like selection advice and pricing tailored to your specific scenarios, get in touch with Wetech. We will work with you to put together a customized warehouse safety boundary solution.
Yes. Laser light maintains high contrast under most indoor lighting conditions, and higher-power models remain clearly visible even in strong ambient light.
Not really. The fixed model (WT-TZ8026-R) connects to standard AC power, and the onboard model (WT-TZ8021) connects to vehicle DC power. Adjust the projection angle, fix the bracket, and you are done — no complex construction required. Most warehouse maintenance staff can handle it following the manual.
Safe. Warehouse safety laser lights use safety-class lasers that will not harm human eyes under normal use. During daily operations, personnel see the light projected on the floor, not the direct light source, so it is completely safe. Simply avoid staring directly into the fixture outlet for extended periods. Of course, it is important to select appropriate products in accordance with local government regulations governing this type of lighting.
Absolutely. The WT-TZ8026-R supports a wide operating temperature of -40°C to 70°C with IP65 protection, making it suitable for cold-storage warehouses, humid storage areas, dusty loading zones and other harsh environments. It keeps projecting a clear line even at low temperatures.
No. Safety laser lights are projected markings that do not contact the floor, so there is no rolling wear or drag scratching. Once installed and calibrated, the line stays projected consistently for the long term — no repainting, no shutdowns for worn markings.
Not necessarily. The WT-TZ8026-R comes standard with a line width adjustment accessory, so you can fine-tune the thickness and coverage of the projected line based on aisle width. One fixture can handle aisles of different widths. If the width difference is especially large, you can also adapt by adjusting the mounting height and projection angle.
