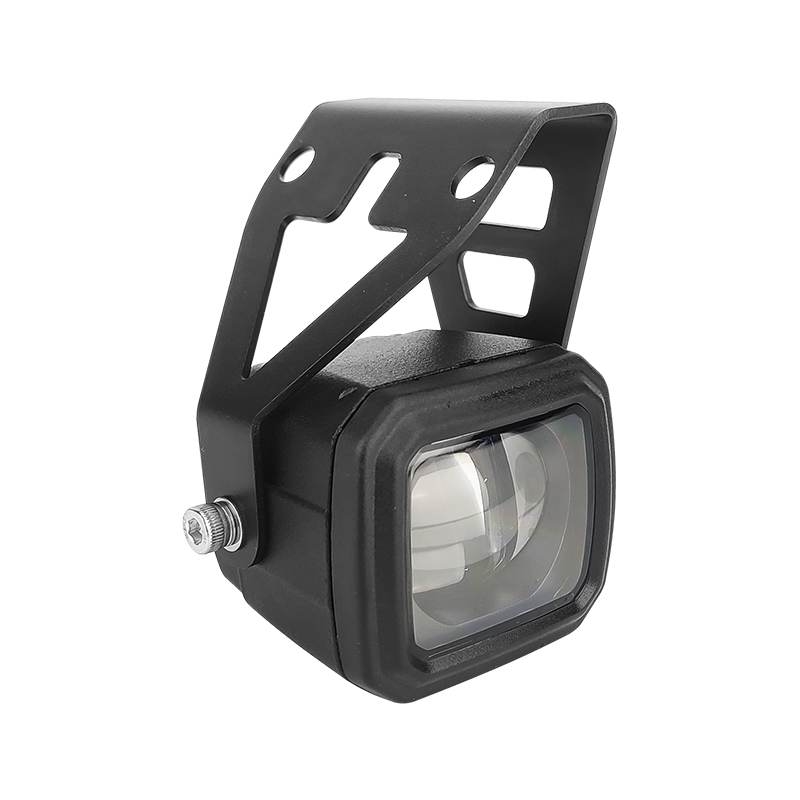

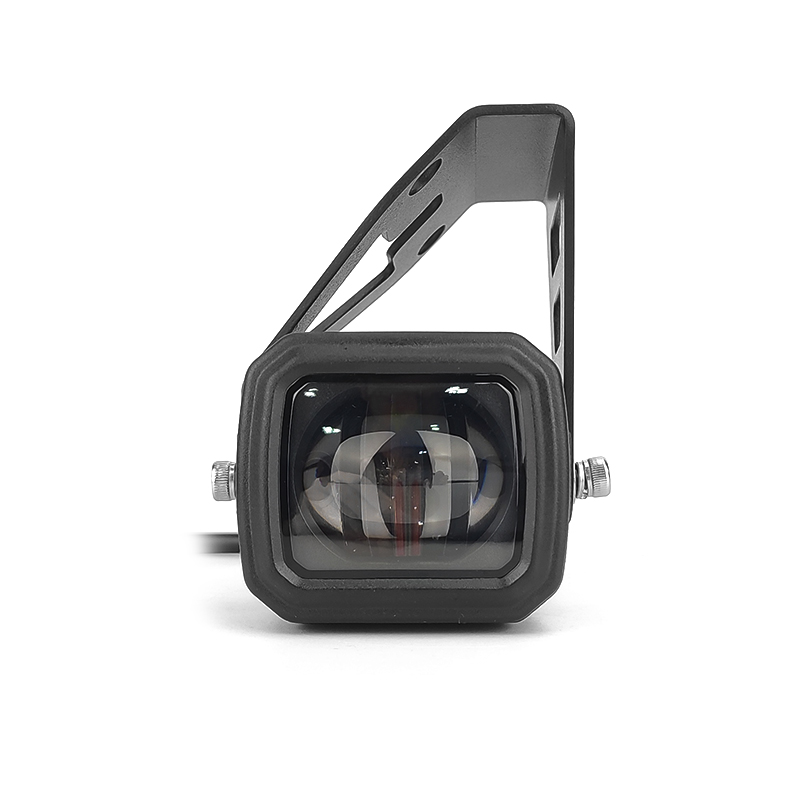

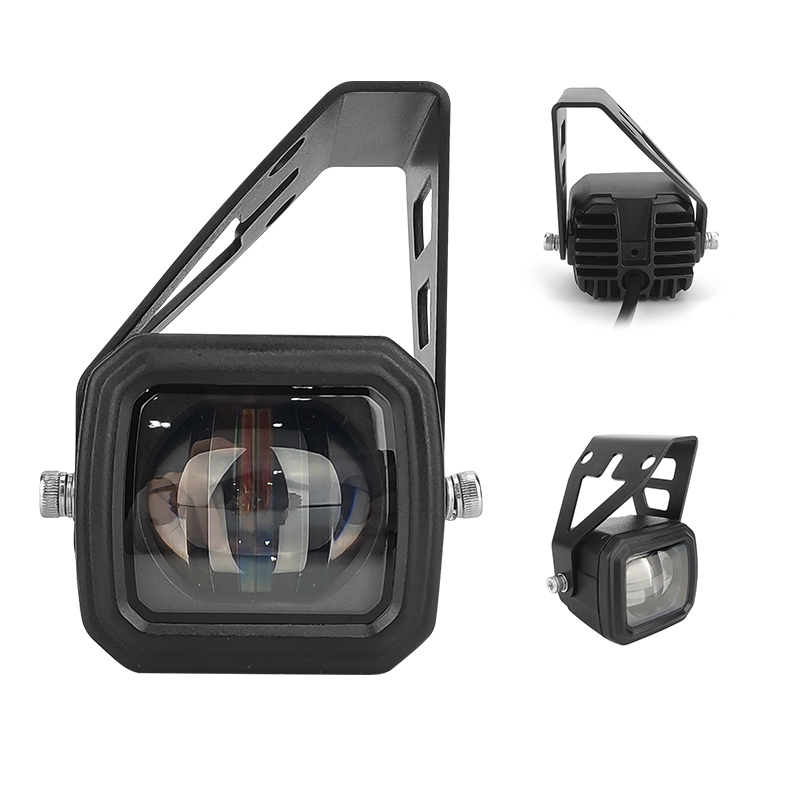

Amber Flashing LED Warning Light for Tail Lift – Line Beam (Straight)
The WT-102010-1 Amber Flashing LED Warning Light is engineered specifically to enhance rear safety for vehicles equipped with tail lifts. Its LINE BEAM design projects a highly concentrated, straight-line beam of flashing amber light, ensuring clear and attention-grabbing visual warnings during tail lift operation, loading, or unloading.
Item No :
WT-102010-1Voltage :
10-36VPower :
10W, 2PCS*5WColor :
silverMaterial :
PC Lens, Zinc Alloy HousingMounting Bracket :
noneWaterproof :
IP67Beam :
LineMOQ :
20pcs
Key Features

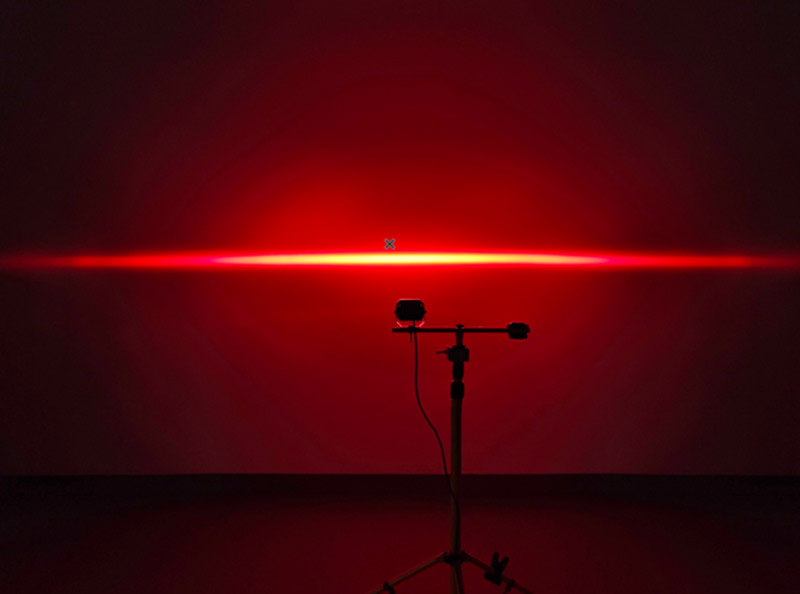

Focused Line Beam Pattern: Projects a distinct, straight-line flashing amber beam, optimized for long-range visibility and precise hazard communication.
Wide Voltage Compatibility: Operates efficiently on 10–36V DC, making it suitable for 12V and 24V vehicle systems in vans, trucks, and trailers.
High-Intensity LED Technology: Features bright, long-lasting amber LEDs that ensure outstanding visibility in all daylight and low-light conditions.

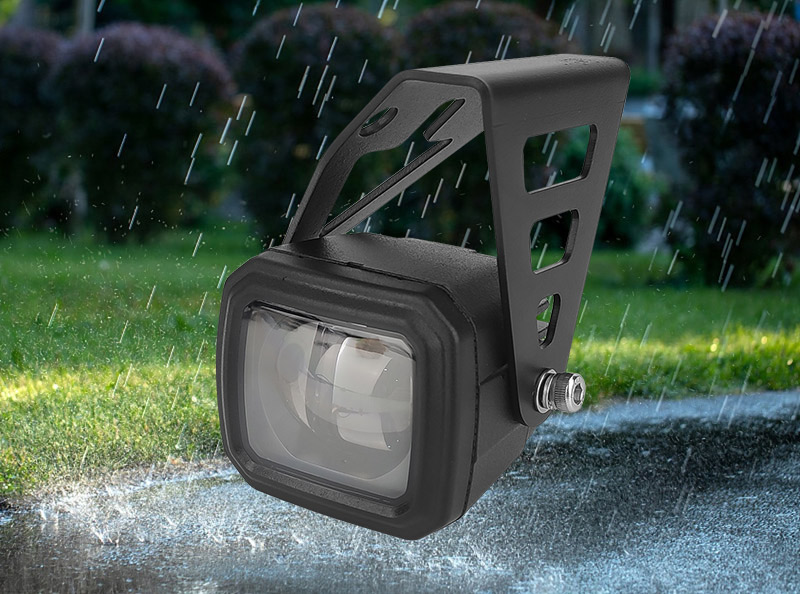

Robust & Weatherproof Construction: Housed in a durable casing designed to resist impacts, vibrations, and harsh weather (typically rated IP65 or higher).

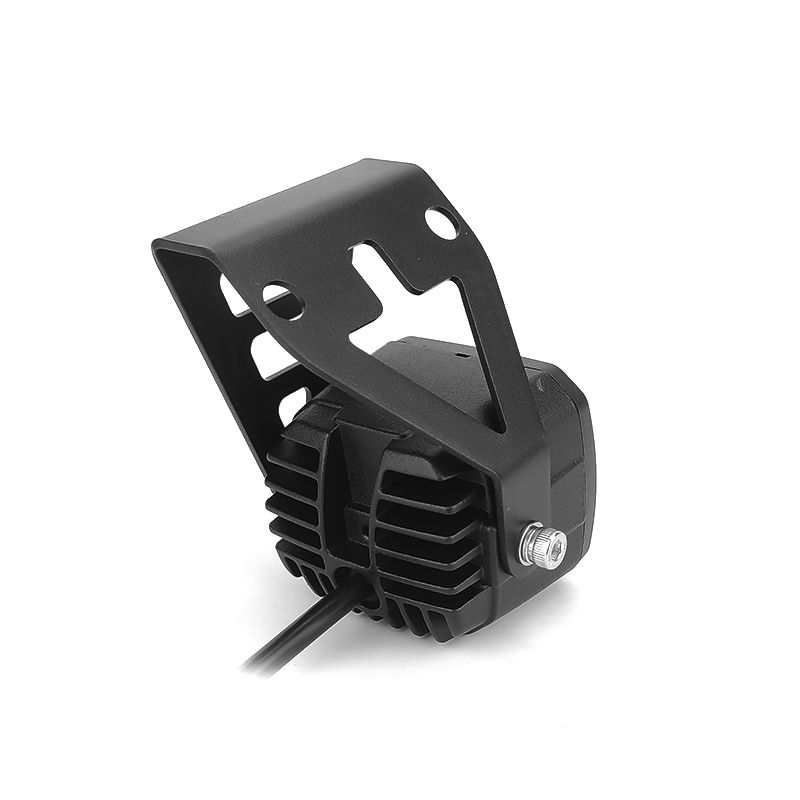

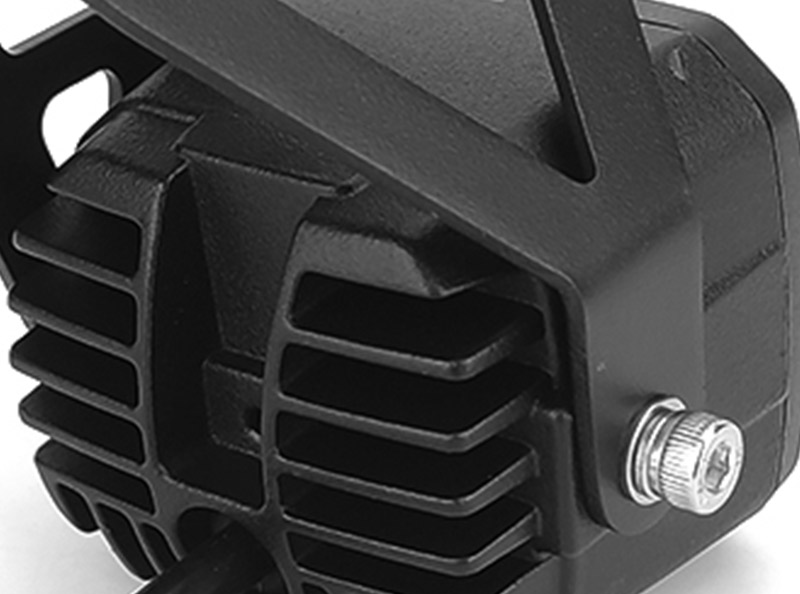

Adjustable Mounting: Unique 180° rotation angle allows for precise beam alignment after installation.
Universal Application: Ideal for warning during tail lift (tailboard) operation, indicating an open rear door, or signaling a stationary hazard.
• Positioning
Place the light unit on the chosen flat surface. Ensure the 180° rotation axis is oriented to allow for final beam angle adjustment.
• Marking
Use the light as a template to mark the positions of the two screw holes.
• Drilling
Drill pilot holes appropriate for the provided M6 tapping screws.
• Angle Adjustment
Loosen the rotation mechanism, set the beam to the desired vertical or horizontal angle (up to 180° range), and re-tighten.
Specification
Adopting high-quality LED light sources with high brightness and strong penetration, the flashing frequency meets road safety warning standards:
| Projection Distance | 300m(dark environment） |
| Light Source Power | 10-36W LED |
| Voltage | 10-36V DC |
| Light Source Type | Osram |
| Light Source Life | 5-60000H |
| Luminous Flux | 4200LM |
| Purpose | for retrofit/upgrade |
| Color | Red |
| Waterproof | lP65 |
| Material Diecast | Aluminum Alloy |

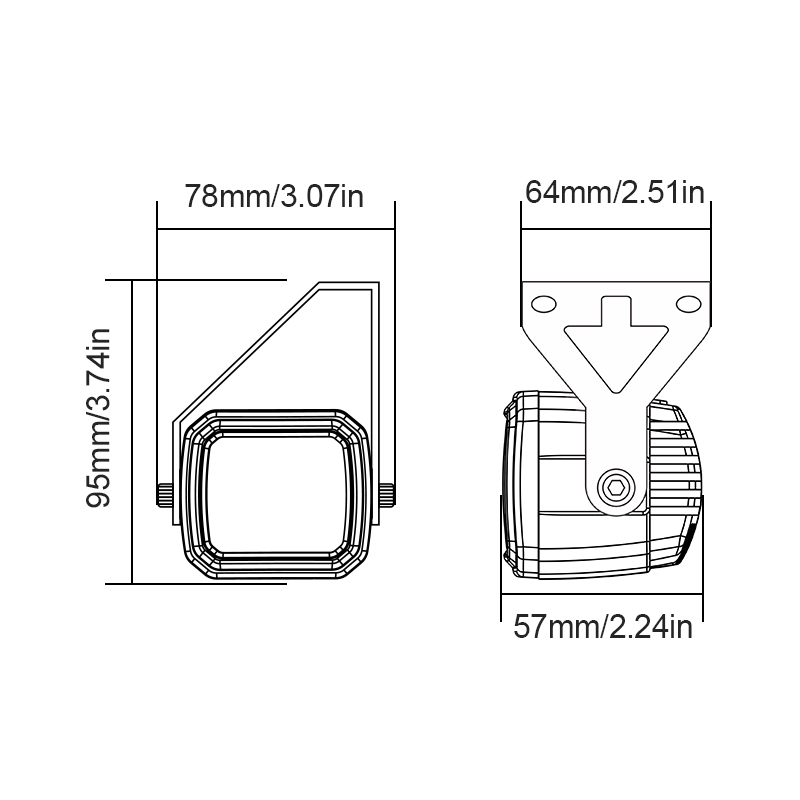

| Size | 78*64*95mm |
| Warranty | 1 Year |
Applications & Benefits
Core Application: Tail Lift/Tailboard Safety Warning during lowering, raising, and while in a stationary lowered position.
Additional Uses: General rear hazard warning for trucks and trailers; auxiliary warning light for stationary breakdowns or slow-moving vehicles.
Safety Benefit: Drastically reduces the risk of collisions by alerting pedestrians and following traffic to a vehicle's active loading zone or rear obstruction.
Regulatory Compliance: Aids in meeting workplace health & safety (OSHA-like) and vehicle safety regulations regarding visible warning signals.
Reliability & Value: Engineered for commercial use with low power consumption and minimal maintenance for long-term cost-effectiveness.
Important Notes
Disclaimer: The installer is responsible for ensuring the wiring and installation comply with all local electrical standards and vehicle regulations. Professional installation is recommended.
Installation Details & Positioning

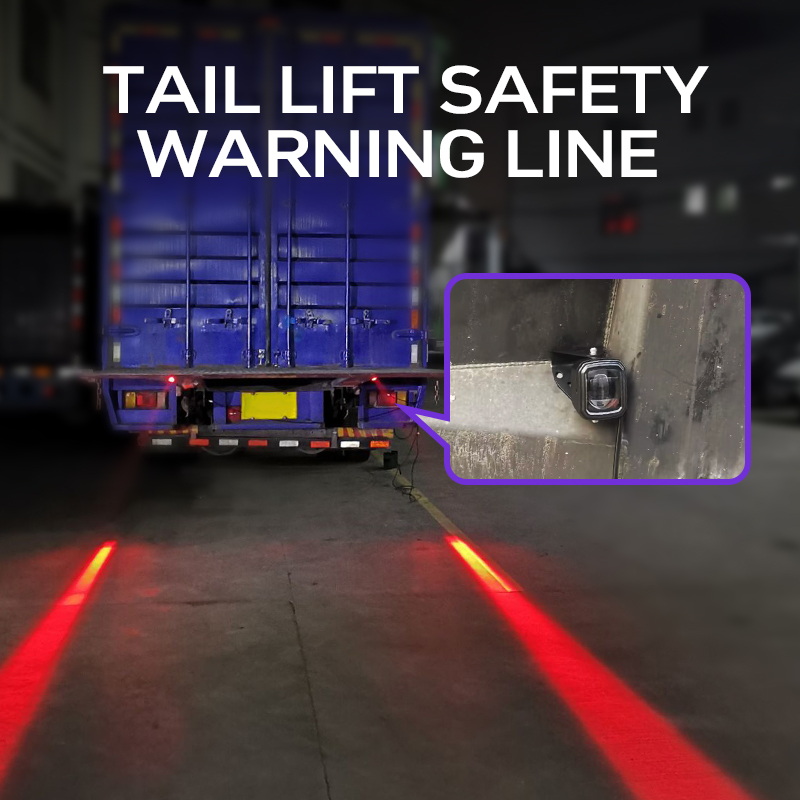

Recommended Installation Position:
As depicted in the diagram, the ideal mounting location is on the Tailboard – Back (the rear-facing surface of the tail lift platform) or on the vehicle's rear door frame directly above the loading area. This position ensures the warning beam is visible directly from the rear when the tail lift is deployed.
Wiring Connection:
Important: The wiring connection depends on the user’s own specific situation.
The light uses a standard 2-wire system (Positive + / Negative -).
Connect the positive wire to a switched power source. This can be:
The power line activating with the tail lift motor.
A dedicated switch on the dashboard.
The vehicle's reverse light circuit (for activation when in reverse gear).
Connect the negative wire to a clean, unpainted metal point on the vehicle chassis (ground).
Important Notes
Disclaimer: The installer is responsible for ensuring the wiring and installation comply with all local electrical standards and vehicle regulations. Professional installation is recommended.
Legal Compliance: Buyers must verify that the use of this flashing amber light complies with their local road traffic and vehicle lighting laws. It is primarily intended as a warning light for specific operational hazards, not for continuous use while driving on public roads unless permitted.
