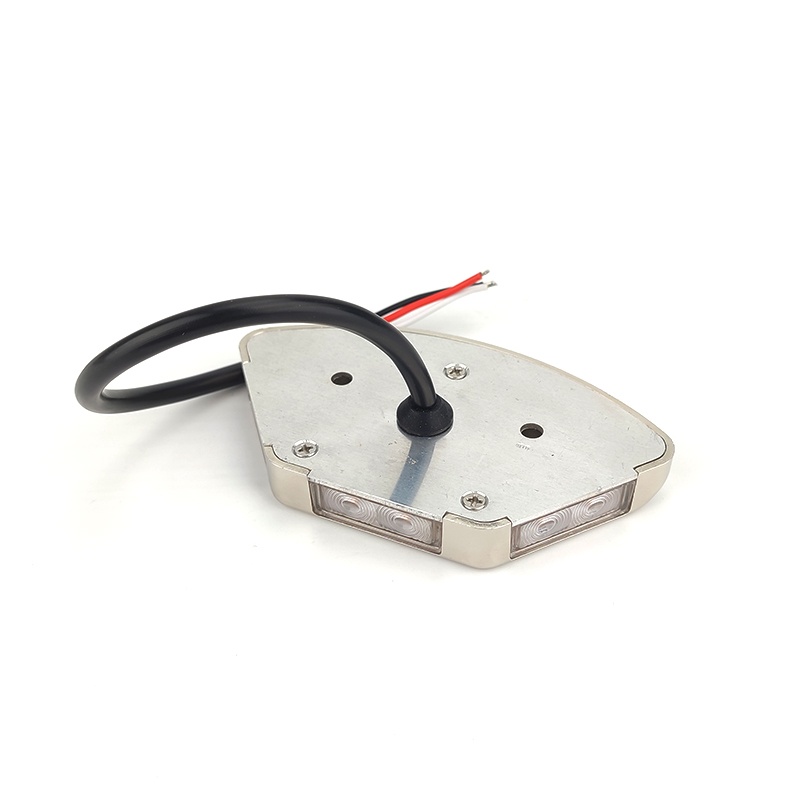

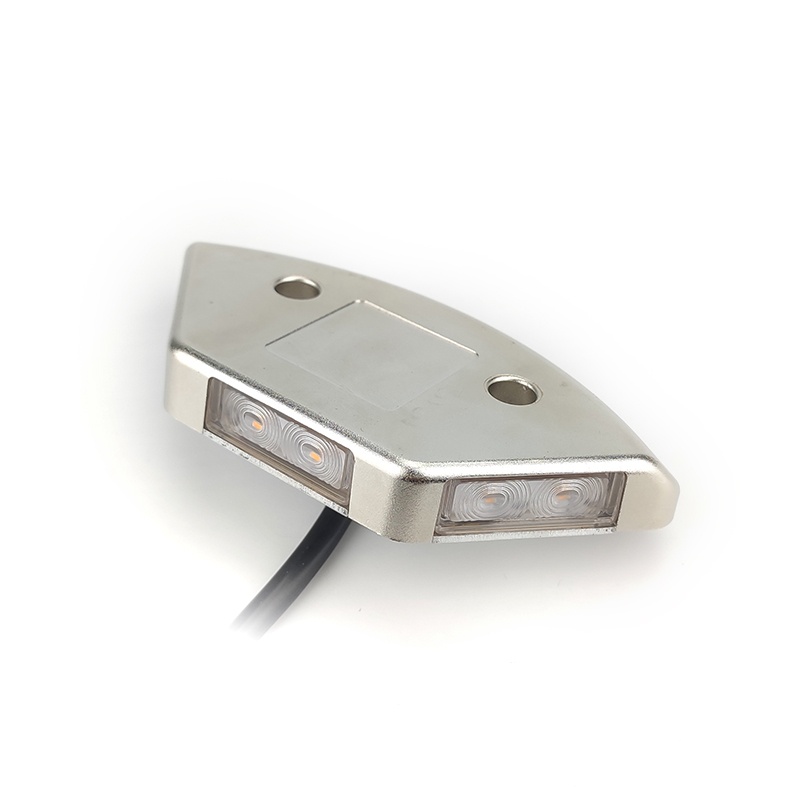

Tail Lift Amber Flashing LED Warning Light For Luton Van Truck Lorry Trailer 10-36V DC

Ideal For: Warning during loading/unloading with tail lifts, indicating an open or lowering tailgate, marking a stationary obstruction on the road.

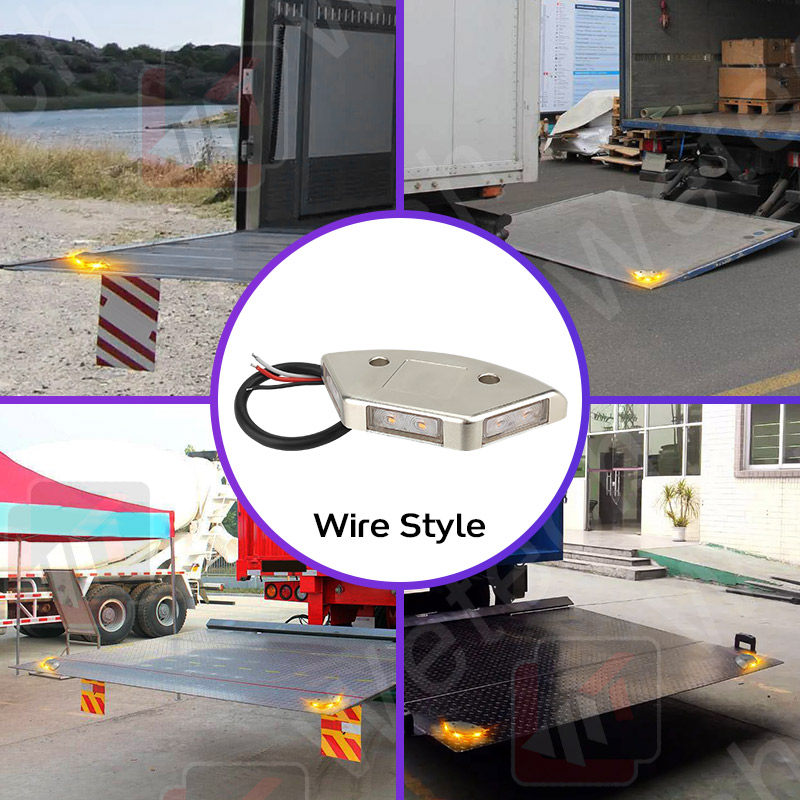

Mounting Location: Typically installed at the top center of the rear door frame, on the tail lift platform itself, or on the vehicle's rear panel above the loading area.

Wiring: Connect the positive wire to a switched power source (e.g., from the tail lift control circuit or a dedicated switch) and the negative wire to a clean chassis ground.

Key Features & Specifications

High-Intensity LED Array: Utilizes powerful, long-lasting amber LEDs that deliver exceptional brightness even in direct daylight, ensuring maximum visibility and safety compliance.

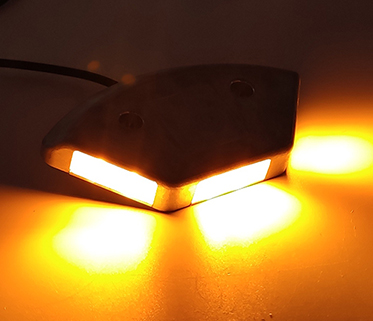

Distinctive Flashing Pattern: Features an attention-grabbing flashing/strobing pattern designed to immediately signal potential hazard and operation, meeting common safety regulations for commercial vehicles.

Wide Voltage Compatibility: Operates on a broad 10-36V DC range, making it compatible with virtually all vehicle electrical systems, including 12V and 24V setups for vans, trucks, and trailers.

Rugged & Durable Construction: Housed in a high-quality, weather-resistant casing (typically ABS plastic or similar) that is built to withstand harsh environmental conditions, including rain, snow, dust, and vibration.

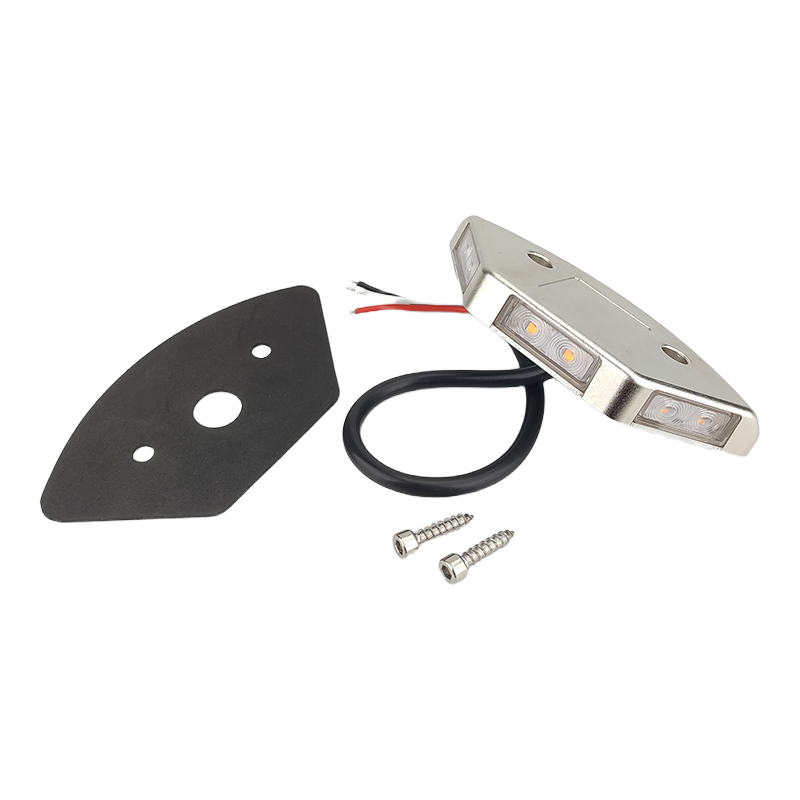

Easy Installation: Designed for straightforward mounting. Often includes pre-drilled holes, mounting brackets, or adhesive options for secure attachment to the vehicle's rear door frame, tail lift structure, or body panel.

Simple Wiring: Comes with sufficient cable length and clear wiring instructions (usually 2-wire system: positive and negative). Can be connected to the tail lift's power circuit or a separate switch to activate automatically with lift operation or manually as needed.

Low Power Consumption: LED technology ensures high efficiency with minimal draw on the vehicle's battery.

Compliance: Designed to meet relevant vehicle lighting and safety standards for warning beacons (specific standards may vary by region).

Technical Details

Color: Amber (Yellow/Orange).

Light Mode: Flashing/Strobing.

Operating Voltage: 10-36 Volts DC.

IP Rating: Typically IP65 or higher, indicating dust-tight and protection against water jets.

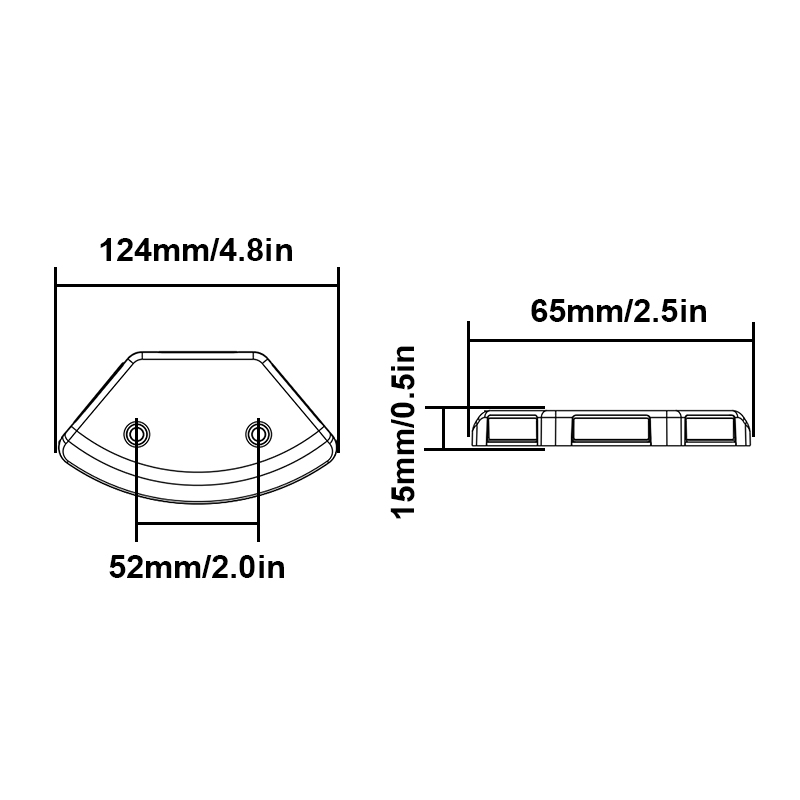

Dimensions: (Provide approximate measurements, e.g., 150mm x 80mm x 30mm or as per specific model).

Lens Material: Clear or tinted polycarbonate for high light transmission and impact resistance.

Connection: Wires with stripped ends or connectors (specify length, e.g., 1-meter cable).
